Belimo Assistant Screenshots
Belimo Assistant Description

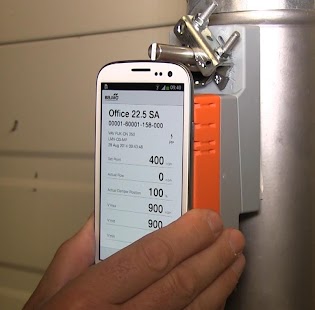

With the Belimo Assistant App, your NFC-capable Smartphone becomes an on-site adjustment tool for VAV-Compact MP volumetric flow controllers from Belimo.Always on hand! The VAV-Compact has an integrated NFC interface for wireless access to the parameters and operating data.
NFC - Near Field Communication.
This function is exclusively available for VAV-Compact controllers in the MP version (starting 2015).
Display options and supported functions
• Identification data: Type, Position, Designation, Serial number, MP address
• Process data: set point for volumetric flow, actual volumetric flow, damper position

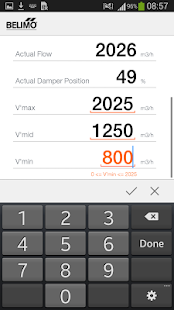

• Operating parameters: V'nom, V'min / V'mid / V'max, Mode, Direction of rotation
• NFC data transmission in deenergised status or during ongoing operation
• Selectable volumetric flow units m3/h, l/s and cfm
• Four languages (DE / EN / FR / IT), setting takes place automatically via the system language of the Smartphone
All renowned VAV-unit manufacturers (OEMs) install Belimo VAV-Compact controllers on their VAV units and calibrate them.
The manufacturer defines during this task the function of the NFC interface of his VAV unit: Read or Read/Write.
Additional information regarding the VAV-Compact controller is available from your manufacturer/supplier of the VAV units or under www.belimo.eu
Using the Belimo Assistant App .
see film
Requirements
• VAV Compact L/N/SMV-D3-MP / LHV-D3-MP with NFC logo (as of year of mfg 2015)
• Android Smartphone with NFC chip and Android V4.1 (or higher)
Note
• The App can be installed only on Smartphones that are equipped with an NFC interface.
• Depending on the design of the Smartphone (position of the NFC antenna), differences may exist in handling and/or in transmission quality.
• Older (before 2015) VAV-Compacts or devices without NFC interface are operated with the conventional tools.
What's new in Belimo Assistant 1.1
- If V'nom=0, values can't be changed- Bugfixing
